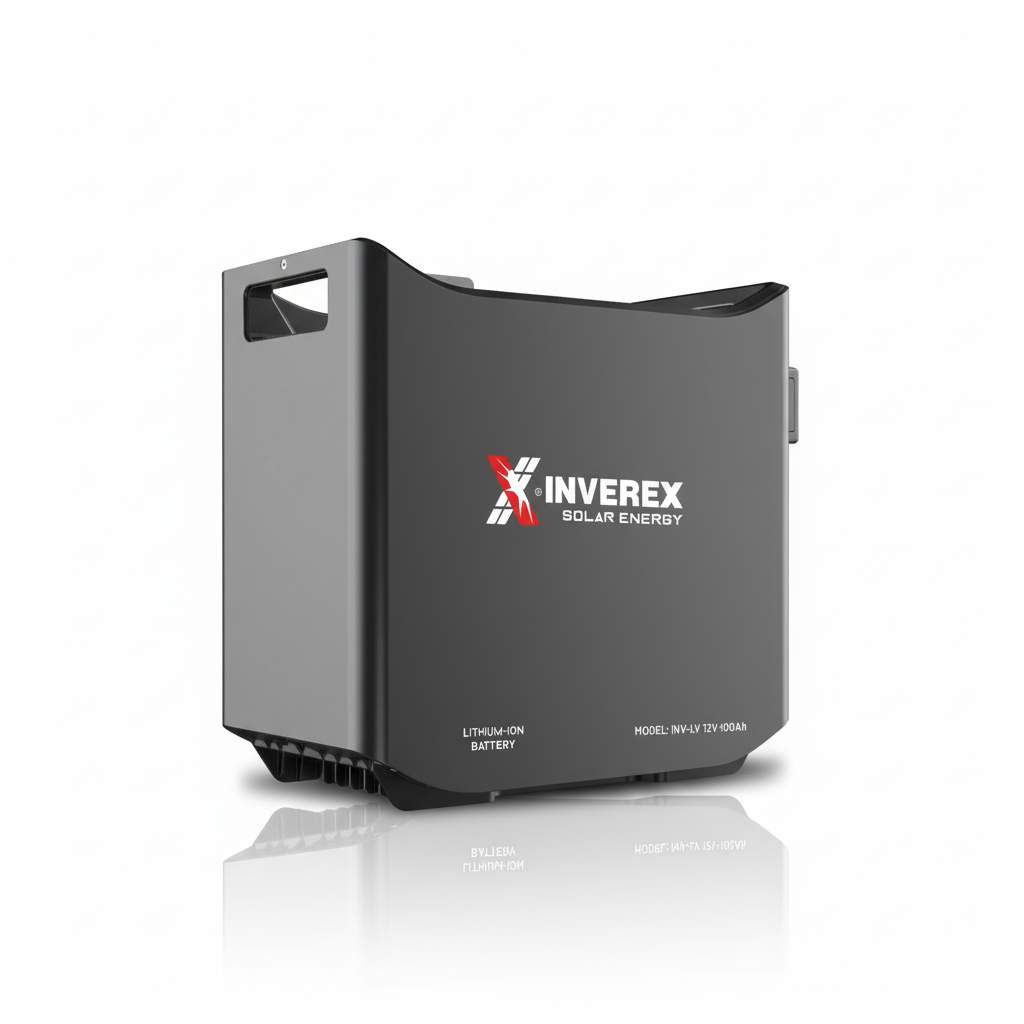

INVEREX-LV 12V 100AH Lithium-Ion Battery

70,400.00

Follow Us:

Description

Designed for both performance and durability, the INV-LV 12V 100AH battery is the ideal solution for powering residential inverters and backup systems. Its compact and lightweight form factor allows for effortless integration, while advanced battery management ensures safe and efficient operation under various load conditions.

Feature Specification
Battery Chemistry LiFePOâ‚„
Nominal Capacity 100 Ah
Nominal Voltage 12.8 V
Operating Voltage 11.2 V ~ 14.6 V
Nominal Energy 1.28 kWh
Cell Configuration Prismatic, 1P4S
Scalability Max. 4 units in series (51.2V) and Max. 10 units in parallel
Charge Current (Max. Continuous) 100 A
Charge Current (Peak) 200 A (10 sec)
Discharge Current (Max. Continuous) 100 A
Discharge Current (Peak) 200 A (10 sec)
Recommend Depth of Discharge 80% DoD
Dimensions (W×D×H) 310 × 160 × 298 mm
Weight Approximate 11 kg
Case Material ABS+PC
LED Indicator LED (SOC, working, protecting) & Buzzer
Communication RS485
IP Rating of Enclosure IP20
Operating Temperature Charge: 0 ~ 55°C, Discharge: -20°C ~ 55°C
Storage Temperature 0 ~ 35°C
Relative Humidity 95%
Altitude ≤ 2000m
Cycle Life ≥ 6000 (25°C±2°C, 0.2C charging and discharging, 80%DOD, 70%EOL)
Warranty Period 5 years (3 years product warranty + 2 years service warranty)
Installation Floor-Mounted, Stack-Mouted
Certification UN38.3, MSDS
Products Details
  • High Compatibility with built-in 5A charge limit, supports all inverter brands.
  • Expandable: Connect up to 4 units in series and 10 in parallel.
  • Intelligent BMS with real-time monitoring and protection features.
  • Safe and long-lasting LFP chemistry with wide temperature range.
  • Delivers up to 6000 cycles at 70% end-of-life.
  • High discharge support of 200A for 10 seconds.
  • Firmware upgradable via RS485 port, external charging supported.
  • Lightweight design – only 11 kg, IP20-rated casing.
  • 5-Year Warranty (3 years product + 2 years service).
