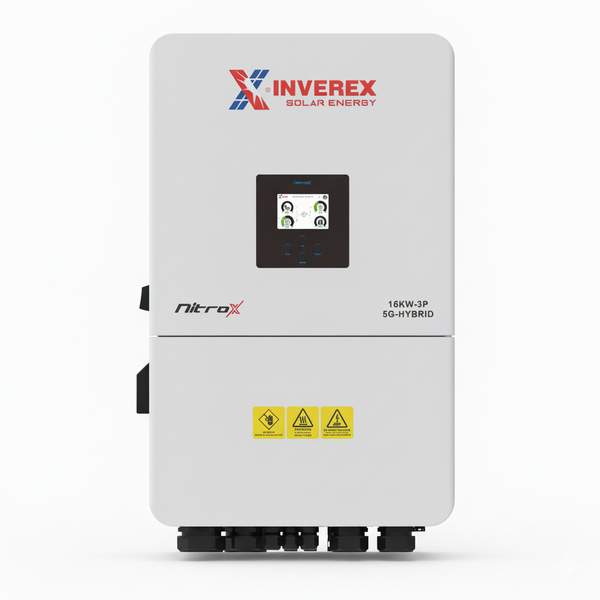

Engineered for heavy-duty commercial and industrial applications, the NitroX 16KW 3P 5G Hybrid Inverter delivers ultra-high power handling, advanced MPPT tracking, and seamless scalability. Its robust design ensures reliable performance even under harsh environmental conditions.
Key Features
- 25.6KW PV Input Capacity: Wide MPPT range (160–650VDC) with dual 36A+36A input currents for maximum solar capture.
- 300A Charge & Discharge:Â Ultra-high current support for large battery banks and intensive load demands.
- Dual MPPT with Independent Strings:Â Two MPPTs (2/2+2) to optimize energy harvest from varied orientations.
- 100% Unbalanced 3-Phase Output:Â Up to 50% of rated power per phase, ideal for uneven industrial loads.
- Parallel Operation:Â Supports up to 10 units in on-grid/off-grid configurations for scalable installations.
- AC Coupling Ready:Â Retrofit existing grid-tied systems to hybrid without changing infrastructure.
- 48V Battery Support:Â Compatible with lead-acid and Li-ion banks, with dual inputs for redundancy or expansion.
- Color Touch LCD + IP65:Â User-friendly interface in a dust- and water-resistant enclosure suitable for indoor/outdoor.
- Programmable Battery Scheduling:Â Six configurable time slots for customized charge/discharge profiles.
- Diesel Generator Integration:Â Efficiently stores energy from DG backup sources for remote/unstable power areas.
- High Efficiency & Clean Output:Â 97.6% peak efficiency, >99% MPPT accuracy, <0.5% DC ripple.
- Heavy-Duty Build & Air Cooling: Operates from -40°C to +60°C with intelligent thermal regulation.
- Comprehensive Protections:Â Surge, polarity, overcurrent, short-circuit, thermal, insulation monitoring, RCD.
- Smart Monitoring & Communication:Â RS485/RS232/CAN + optional WiFi, Bluetooth, 4G, LAN remote monitoring.
- 5-Year Warranty:Â Backed by Inverex, compliant with IEC, EMC, OVC global safety standards.
Shipping & Installation
- Nationwide delivery within 3–5 business days
- Professional on-site installation and hybrid integration available
